The LED strip screen is an LED light strip pasted on an acrylic board. It needs to be attached to the glass, so the heat dissipation of the LED light is blocked. The new LED transparent screen uses a new manufacturing process, breaking the defects of the LED strip screen, enabling the LED transparent screen to achieve true moisture resistance, water resistance, dust resistance, and UV resistance, so that the LED transparent screen can be applied to any harsh outdoor surroundings
LED Glass Display is called SMD modular products with high brightness, which has broken a set of new probability for lighting and glass advertising. Those features- thinness, lightweight, high brightness and seeing through also are offered with convenience, quick implemented hardware and software interfaces.

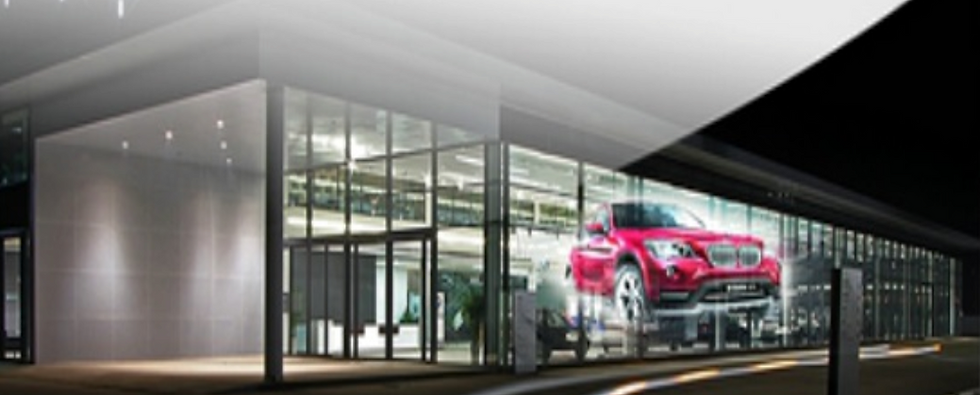

More possibility is created by the bright unit and smallest pixel of LED Glass Wall, which can make the image and video with brightness and brilliance even in daytime. As birth of Glass Led screen for Building, more functions and possibilities will be brought about.
T3 SYSTEM P3.9 Transparent Led Screen 1000*500mm
Product specification Product model PixelPitch 3.125*6.25 ScanMethod 1/4 ModuleResolution 320dotsx80dots ModuleDots 25600dots ModuleSize(widthxheight) 1000mm*500mm Resolution(dot/㎡) 51200dots Max.Power(W/㎡) 800watts Ave.Power(W/㎡) 550watts ModuleRawMaterial aluminum Brightness 6000cd/㎡ ViewAngle (H)120°,(V)120° MinimalViewingDistance ≥3M GrayScale 14bit Color 10bit RefreshRate 3840Hz RepetitionFrequency 60HZ InputVoltage 100VAC~240VAC PackingWay wooden/airCases Transparency 76% LifeSpan ≥100,000hours IPGrade IP20 WorkingTemperature ﹣10℃~40℃ Weight 15.2kg/sqm ControlSystem Nova/Mooncell PixelConfiguration PixelConfiguration 1R1G1B NationStar SMD1921
