PCS-110L 1x10“/2x1“ Line Array Module

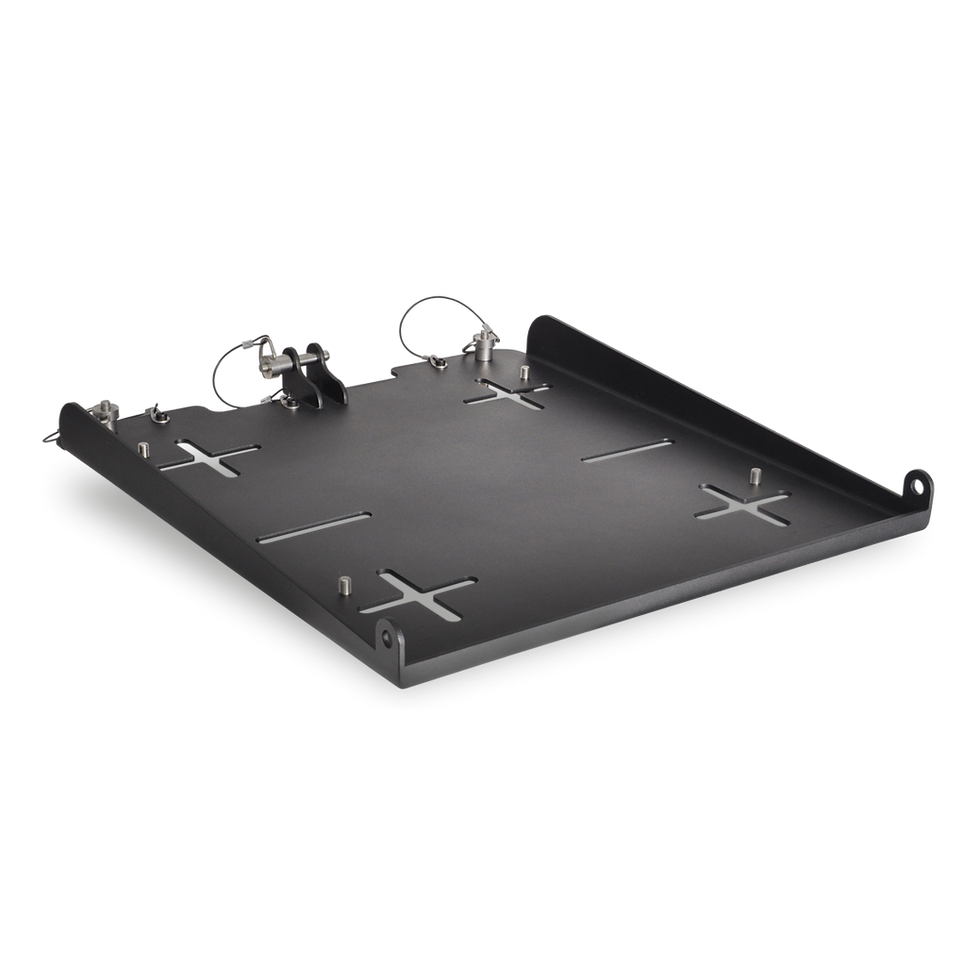

PCS-110L is a compact size, high power speaker to use in vertical line array columns up to 24 units per flight frame. The mechanical design offers a vertical adjustment from 0° to 10° with a resolution of 1,0° per step. For an easy setup of the vertical angel PCS-110L is equipped with a simple but clever mechanical brake. The entire flyware is made of high quality, extreme resilient aluminum components. This two way passive system is comprised of one 10” Neodymium woofer and two right mounted 1” drivers connected to an accurate calculated wave guide. The maximum SPL of a single unit is 133 dB. The coverage pattern is 10°x120° (v x h). The shock-proof and wheather-resistant housing is made of best quality Baltic multiplex wood and covered with a strong, black water-resistant Polyurea coating. Four integrated handles will support an easy transport and installation. The front side of the speaker is protected by a 1,5 mm strong, black metal grill covered with black color acoustic foam. The construction of the two different available flight frames allows multi-functional hanging and standing installation.
PCS-110L GS1 (EAN) CODE: 4260318510592
4-acoustic Germany PCS-110L 1x10“/2x1“ Line Array Module
Model Name PCS-110L GS1 (EAN) CODE 4260318510592 System Type 1x10“/2x1“ 2_Way Line Array Module Power Rating 450 W AES
900 W program
1800 W peakFrequency Range (+/- 3 dB) 75 Hz - 20 kHz Coverage Pattern (hxv) 120°x10° Sensitivity 103 dB 1w/1m Maximum SPL 133 dB Woofer 1 x STG-10L 350W AES, 3“ voice coil, neodymium Driver 2 x STG-45NB 50W AES, 1,75“ voice coil, neodymium Nominal Impedance 16 Ohm Input Connectors 2 x Neutrik NL4 Socket
parallel 1+/1-Housing Birch Multiplex Coating Water-resistant Polyurea coating Dimensions (h/w/d) 319x500x515 mm Net weight 21,5 kg
